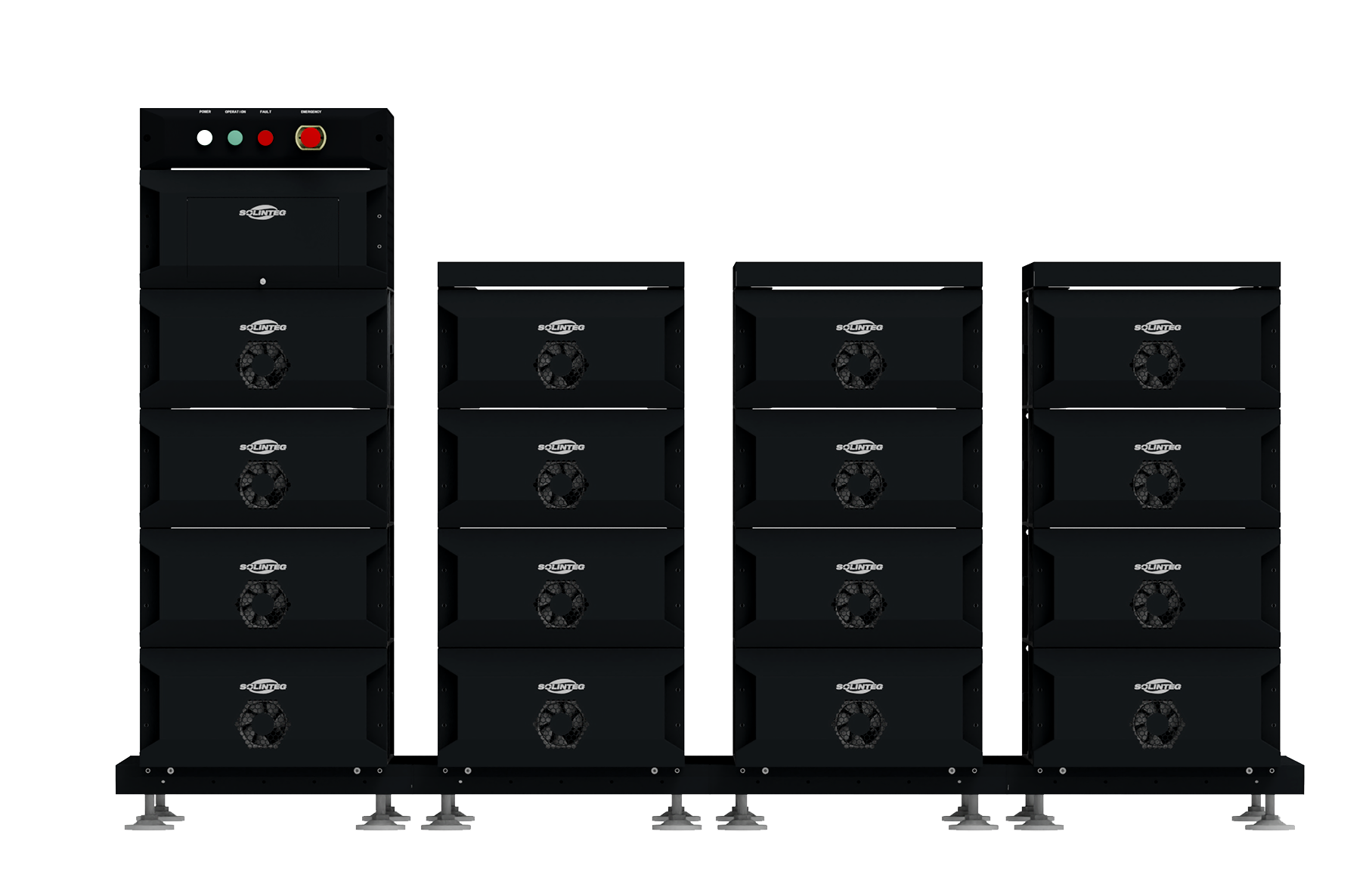

E2BR-S64-257K-R-Max
Integ E 系列

室内机架式电池系统

高压
C&I
机架

特性

极简堆叠式安装

无机柜堆叠设计与预制线缆大幅简化现场组装，实现更快速的部署。

64–257kWh 灵活容量配置

宽广的容量选择搭配模块化堆叠，轻松适配不同工商业场景的用能需求。

便捷容量扩容

随着用电需求增长随时加装电池模块，让未来的系统扩容变得极其平滑简便。

314Ah 大容量电芯

优质 314Ah 磷酸铁锂 (LFP) 电芯，具备高热稳定性以及强劲的充放电性能表现。

PACK 级消防防护

集成气溶胶灭火系统，实现 PACK 级快速响应防护，全面保障系统安全运行。

智慧远程运维

结合智能 BMS、3 秒极速数据同步及 IntegHub 生态，轻松实现高效监控与远程诊断。

旨在让每一个项目更简单。

1

简化的堆叠结构与即插即用线缆减少了现场安装工作量，助力项目更快交付上线。

2

从 64kWh 到 257kWh 的灵活配置，既能精准匹配当前项目需求，又能满足未来的容量扩展。

3

凭借先进的防护等级、电芯级监控及智能远程诊断，确保系统全生命周期的可靠性能。

探索驱动创新的设计

控制面板

高压箱

技术规格

	E2BR-S64K-R
系统数据
扩展性	4-16 个电池模块串联
系统工作电压范围 [V]	166.4-934.4
系统能量范围 [kWh]	64.31-257.23
安装方式	机架式 / 室内安装
工作温度范围 [°C]	-20~50
相对湿度 [%]	5~95, 无冷凝
高压控制盒数据
最大工作电压 [V]	1000
最大工作电流 [A]	250
尺寸 [宽高深 mm]	490808.5356
重量 [KG]	39.5
电池数据
电池类型	LFP/314Ah
电池模块能量 [kWh]	16.076
放电深度 (DOD)	100%（推荐95%）
工作电压范围 [V]	41.6-58.4
最大充放电电流 [A]	250
尺寸 [宽高深 mm]	490821240
重量 [KG]	122
冷却方式	智能风冷
安全防护	内置气溶胶防护

欲了解更多信息，请下载
数据表或产品手册。
