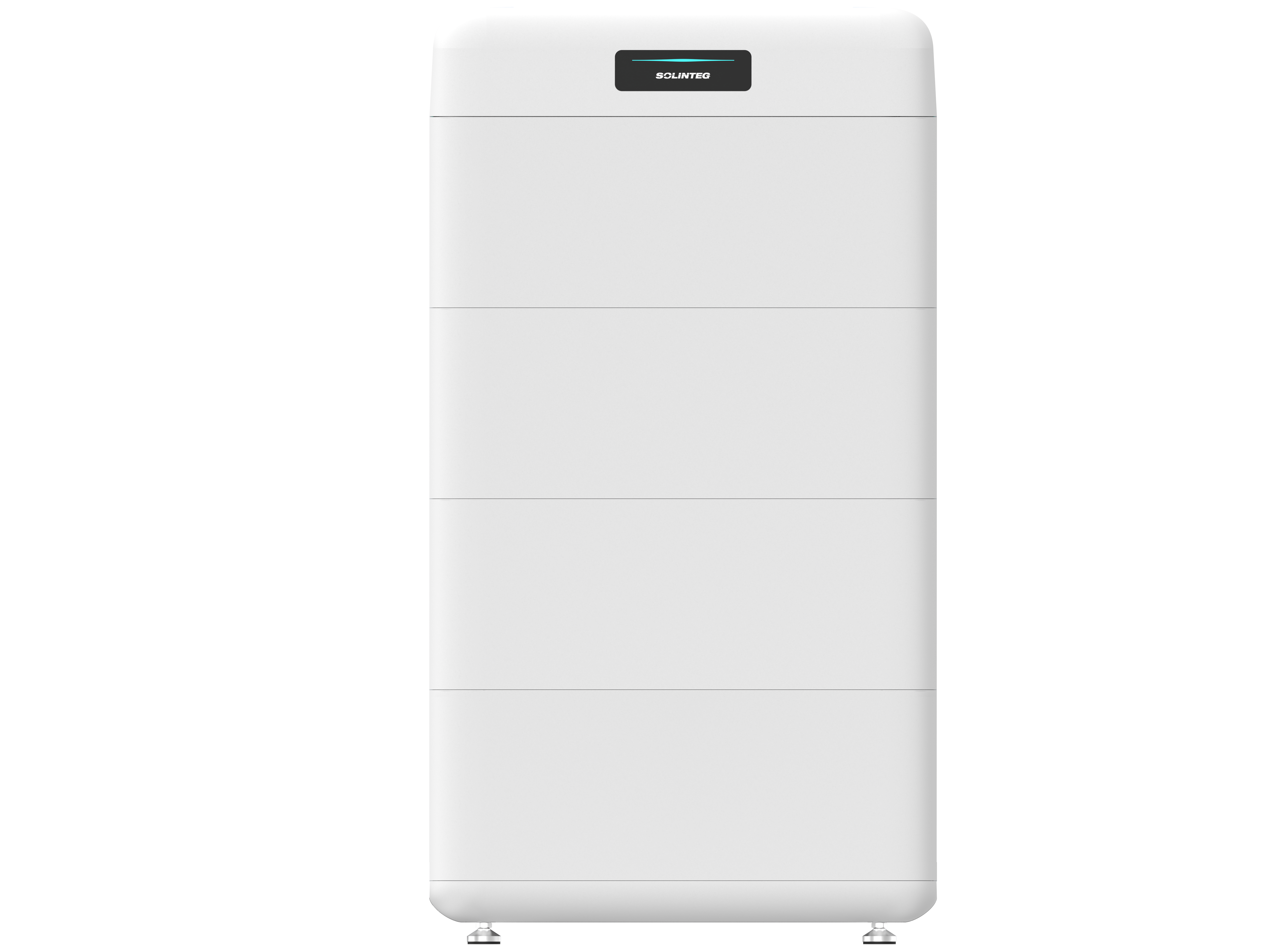

E2BS-B6/9K0-D
Integ E series

High Voltage Battery

Residential
High Voltage
Stackable

Features

Peak Performance

314Ah high-capacity LiFePO4 cells deliver 9kWh usable energy with 100% depth of discharge.

DC/DC Optimized

Module-level DC/DC control enables independent pack performance and higher system utilization.

Flexible Scalability

Easily expand from 6kWh to 54kWh with up to 6 battery packs as home energy needs grow.

Mix & Match Expansion

Supports mixing new and used packs of the same capacity, reducing expansion complexity and stock pressure.

Mix & Match Expansion

Supports mixing new and used packs of the same capacity, reducing expansion complexity and stock pressure.

Plug-and-Play Stacking

Cable-free stacking and blind-mating connectors simplify installation and reduce on-site wiring work.

Flexible home battery storage for larger energy needs, easier future expansion, and smarter use of solar power.

1

Optimize how your home uses and stores energy to reduce electricity costs while keeping reliable power available when you need it.

2

Advanced protection and intelligent monitoring help ensure safe, reliable performance and greater peace of mind throughout everyday use.

3

Expand your storage capacity easily as your energy needs grow, with new and existing battery modules working seamlessly together without performance loss.

Explore the design that powers innovation

Indicator

Connection Terminals

Technical specifications

Battery	E2BS-B6K0-D	E2BS-B9K0-D
Nominal Energy [kWh]	6.02	9.04
Operation Voltage Range [V]	350-900	430-900
Weight [KG]	59	77.5
Dimensions [WHD mm]	745×310×345
Scalability	1~6
Compatible inverters	MHS 3-8K-30, MHT 4-12K-25, MHT 10-20K-40, M2HS 3-6K-30, M2HS 5-12K-50, M2HT 5-10K-30, M2HT 10-30K-80, M2HT 25-50K-150, M2HT 25-50K-160-Neo	MHT 4-12K-25, MHT 10-20K-40, M2HS 5-12K-50, M2HT 5-10K-30, M2HT 10-30K-80, M2HT 25-50K-150, M2HT 25-50-160K-Neo
HV Box
Operation Voltage Range [V]	350-900
Max. Charge/Discharge Current [A]	40
Weight [KG]	7
Dimensions [WHD mm]	745×160×345

For more information, please download the
datasheet or product manual.
