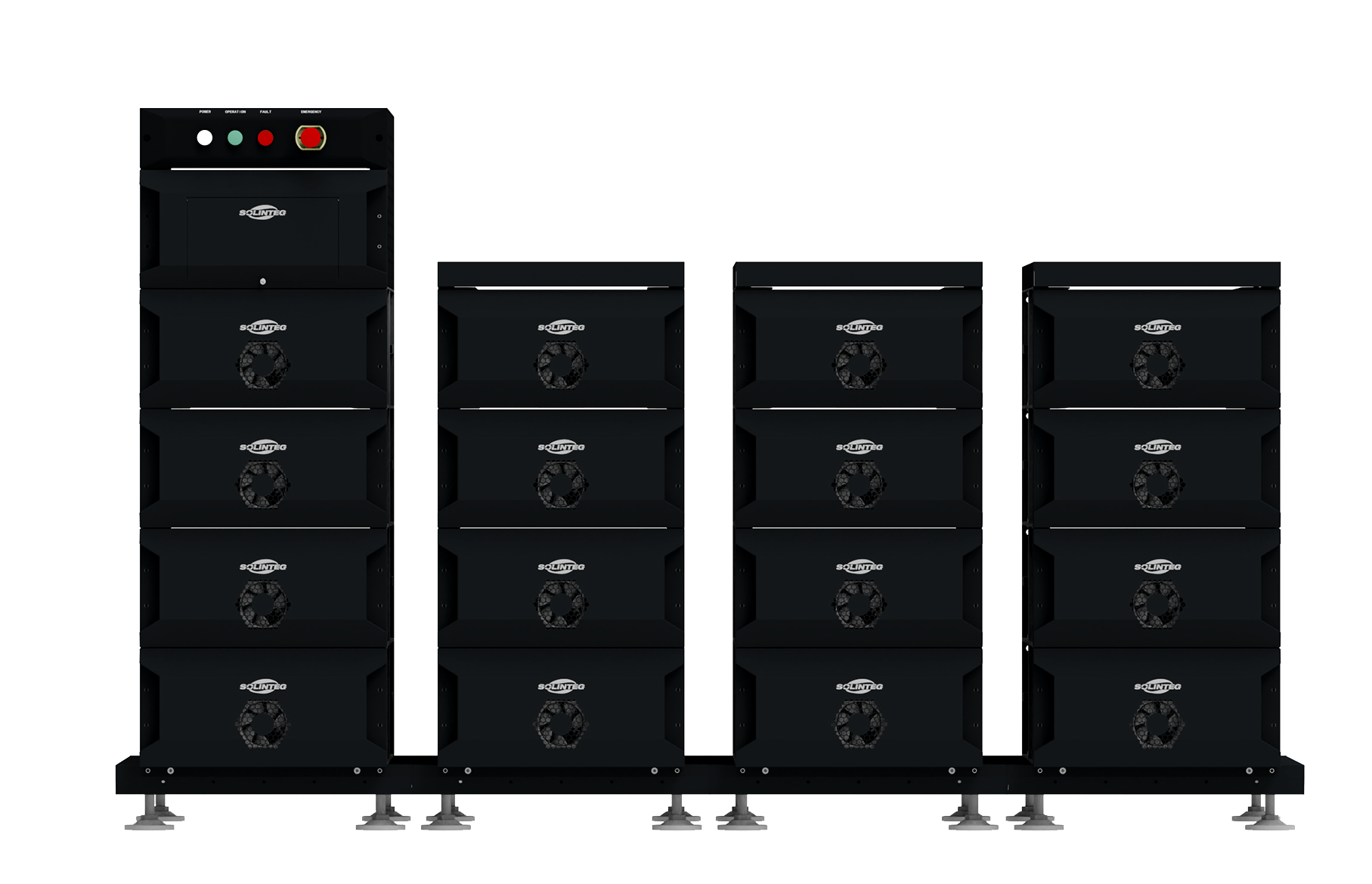

E2BR-S64-257K-R-Max
Integ E Series

Indoor Rack-mounted Battery System

High Voltage
Commercial & Industrial
Rack

Features

Effortless Stackable Installation

Rack-free stacking and pre-fabricated wiring simplify on-site assembly for faster deployment.

Flexible 64–257kWh Capacity

A wide capacity range with modular stacking easily adapts to different C&I energy demands.

Easy Capacity Expansion

Add battery modules as energy needs grow, making future expansion simple and straightforward.

314Ah High-Capacity Cells

Premium 314Ah LFP cells deliver high thermal stability and robust charge and discharge performance.

Pack-Level Fire Protection

Integrated aerosol fire suppression provides rapid pack-level protection for enhanced system safety.

Smart Remote O&M

Intelligent BMS, 3-second cloud data synchronization, and IntegHub enable efficient monitoring and remote diagnostics.

Built to Make Every Project Easier.

1

Simplified stacking and plug-and-play wiring reduce on-site installation work, helping projects get up and running faster.

2

Flexible configurations from 64kWh to 257kWh make it easy to match current project needs and expand capacity as energy demands grow.

3

Ensure reliable performance with advanced protection, cell-level monitoring, and intelligent remote diagnostics.

Explore the design that
powers innovation

Control Board

High Voltage Box

Technical specifications

	E2BR-S64-257K-R-Max
System Data
Scalability	166.4-934.4
System Operating Voltage Range(V)	64.31-257.23
System Energy Range(KWh)	IP20
Battery Module Quantity	Rack-Mounted/Indoor
System Energy (kWh	-20~50
Relative Humidity (%)	5~95, non-condensing
HV Box Data
Max. Operating Voltage(V)	1000
Max. Operating Current(A)	250
Dimensions (W×H×D mm)	490×356×808.5
Weight(Kg)	39.5
Battery Data
Battery Type	LFP/314Ah
Battery Module Energy(kWh)	16.076
Depth of Discharge (DOD)	100%（95% recommend）
Operating Voltage Range(V)	41.6-58.4
Max. Charge & Discharge Current(A)	250
Dimensions (W×H×D mm)	490×821×240
Weight(Kg)	122
Cooling	Smart Fan Cooling
Safety Protection	Built-in aerosol protection

For more information, please download the
datasheet or product manual.
