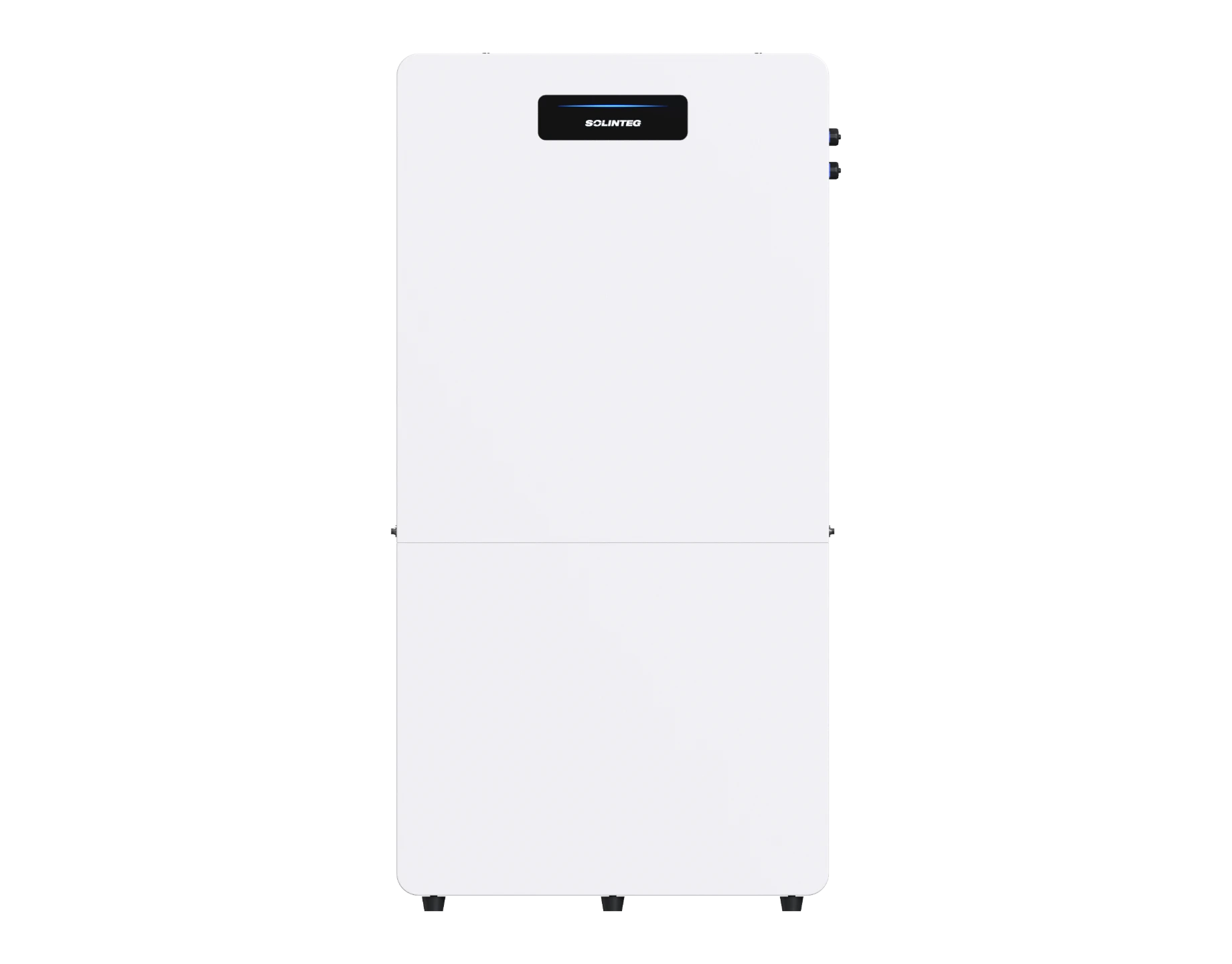

E2BA-B10K3
High Voltage Battery

Residential
High Voltage
All-in-One

Features

Split-Pack Architecture

Innovative dual-pack design makes a 10kWh battery easier to move, handle, and install for residential projects.

Plug-and-Play Installation

Integrated quick connectors reduce internal wiring and help installers complete setup faster.

1C High Power Performance

Up to 10.36kW charge and discharge power supports heavy home loads and faster energy cycling.

Flexible Capacity Design

Start with 10.36kWh and expand to 20.72kWh as household energy needs grow.

5-Layer Battery Protection

LiFePO4 cells, fire control, temperature monitoring, insulation, pressure release, and electrical protection safeguard home energy use.

All-Weather Home Storage

IP65 protection and intelligent self-heating enable reliable indoor or outdoor operation from -20°C to 55°C.

Smarter home storage for greater solar use, backup security, and lower energy bills.

1

Maximize solar self-consumption and power more household appliances with clean energy day and night.

2

Keep essential home loads running during grid outages for a safer, more comfortable daily life.

3

Use smart scheduling, dynamic pricing, and peak-valley strategies to lower household energy bills.

Explore the design that powers innovation

Indicator & Button

Connection Terminals

Technical specifications

Model	E2BA-B10K3
Nominal Energy [kWh]	10.36
Nominal Voltage [V]	345.6
Operation Voltage Range [V]	270-394.2
Max. Charge/Discharge Current [A]	30
Weight [KG]	54+48
Dimensions [WHD mm]	543(671+540)226
Ingress Protenction	IP65
Battery Type	LiFePO4
Installation Method	Floor stacked/ Wall-mounted

For more information, please download the
datasheet or product manual.
