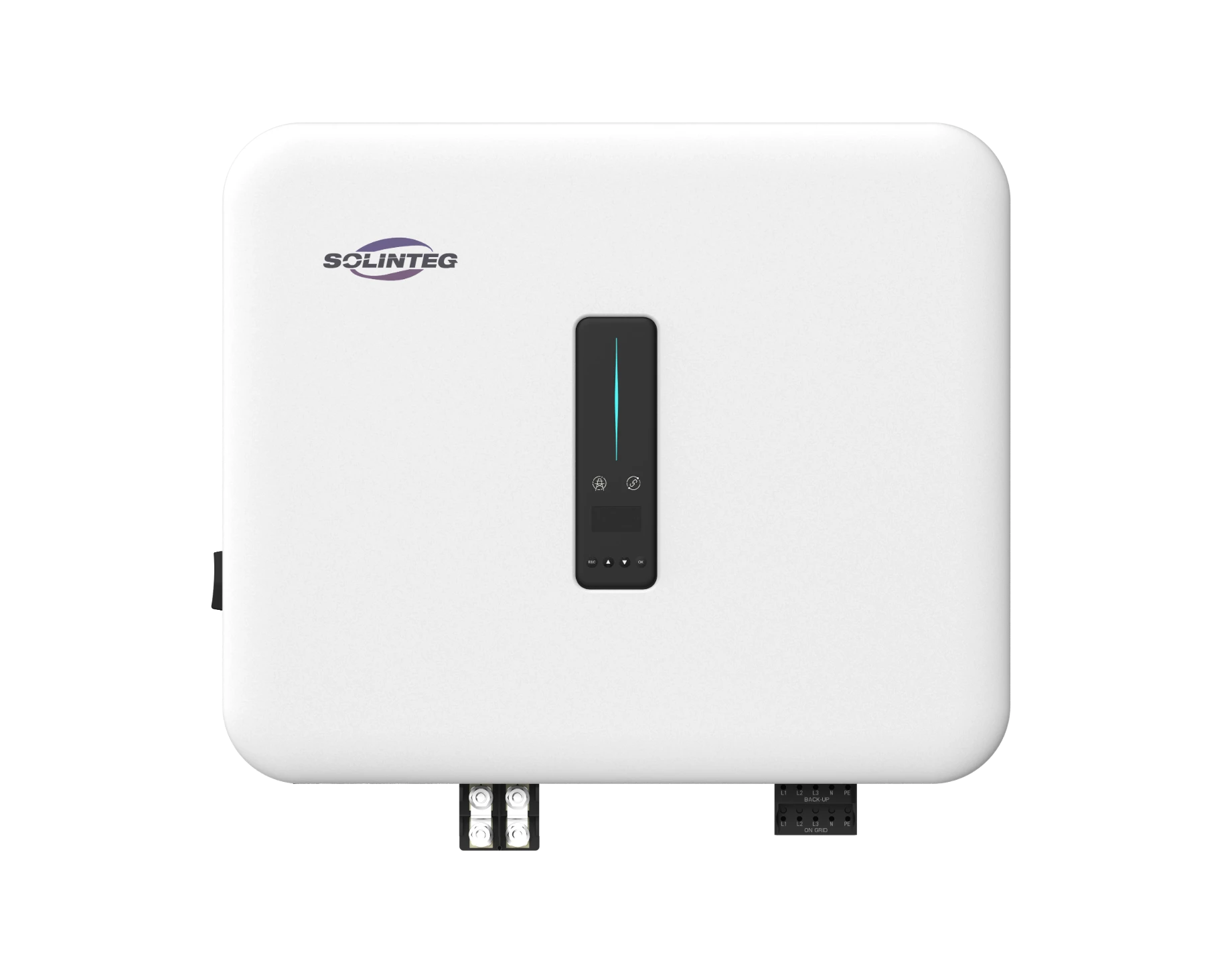

M2HT 10-30kW

M2HT-9.9/10/15/20/24.9/25/29.9/30K-80

Residential & Light Commercial
Three-Phase
High Voltage

Features

Flexible Solar Design

Four MPPTs with up to 20A each bring greater freedom to complex rooftops.

Dual-Battery Capability

Two battery ports with up to 40A + 40A support flexible storage configurations.

Easy Installation & Commissioning

Direct CT, CT self-adaptation and Bluetooth setup help reduce on-site work.

Versatile Energy Functions

Integrated GEN, smart-load and EV-charger interfaces support diverse energy applications.

Intelligent Energy Management

ToU scheduling and dynamic-pricing strategies help optimize energy use and costs.

Resilient Backup

Typical switching below 10ms helps maintain essential power during grid outages.

More possibilities for solar and storage. Less complexity from design to operation.

1

Design more flexibly. Configure PV and storage around complex roofs, growing energy demand and different project requirements.

2

Install more simply. Reduce commissioning friction with direct CT connectivity, CT self-adaptation, Bluetooth setup and clear on-device controls.

3

Coordinate energy intelligently. Bring solar, battery, grid, smart loads and supported generator applications into one connected energy system.

Explore the design that powers innovation

Plug & Play Connections

I-light Breathing Indicato

Technical specifications

Models	M2HT-9.9K-80	M2HT-10K-80	M2HT-15K-80	M2HT-20K-80	M2HT-24.9K-80	M2HT-25K-80	M2HT-29.9K-80	M2HT-30K-80
Max. PV Array Power [kWp]	20	20	30	40	50	50	50	50
MPPT Operating Voltage Range [V]	120-950
Max. Input Current per MPPT [A]	20/20/20/20	20/20/20/20	20/20/20/20	20/20/20/20	20/20/20/20	20/20/20/20	20/20/20/20	20/20/20/20
Battery Voltage Range [V]	130-900
Max. Charge/Discharge Current [A]	402/402
Rated Output Power [kW]（Grid Side）	9.9	10.0	15.0	20.0	24.9	25.0	29.9	30.0
Rated AC Voltage [V]	3L/N/PE; 220/380V;230/400V;240/415V
Max. Output Current [A]（Grid Side）	16.0	17.6	26.2	35.0	39.6	43.8	47.6	47.8
Peak Output Apparent Power [kVA]（Back-up Side）	20 @10s	20 @10s	30 @10s	40 @10s	50 @10s	50 @10s	50 @10s	50 @10s

For more information, please download the datasheet or product manual.
