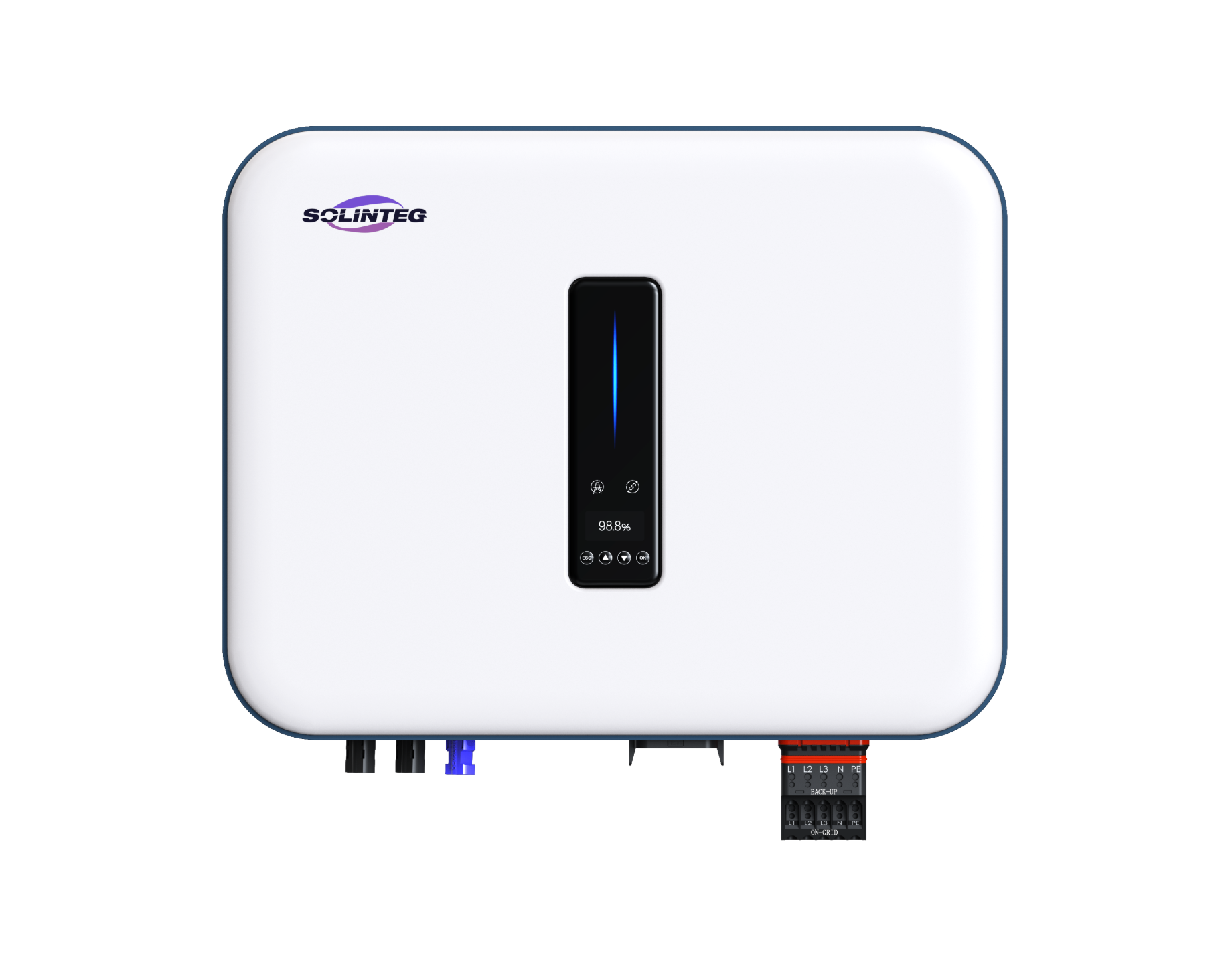

M2HT 5-10kW
Hybrid Inverter

M2HT-5/6/8/9.9/10K-30

Residential
Three-Phase
High Voltage

Features

Boosted Solar Harvest

20A PV input per string supports high-power modules for greater yields.

Unbalanced Output Support

110% unbalanced three-phase output enhances self- consumption and flexibility.

Fast Battery

Response 30A charge/discharge ensures efficient energy storage and usage.

Seamless Backup Switching

10ms switchover guarantees uninterrupted power for essential loads.

Strong Backup Capability

Up to 160% overload capacity @10s ensures stability for essential household loads.

All-Weather Reliability

IP66-rated protection for robust indoor and outdoor installation.

The intelligent core of your solar and
storage system.

1

Whisper-quiet design that blends seamlessly into your daily life.

2

Smarter energy use with intelligent management that saves more, effortlessly.

3

As easy to install and maintain as any modern home appliance.

Explore the design that
powers innovation

360° Product View

0

Click and turn to explore

Plug & Play Connections (Standard Version)

Plug & Play Connections (AC version)

Technical specifications

Models	M2HT-5K-30	M2HT-6K-30	M2HT-8K-30	M2HT-9.9K-30	M2HT-10K-30
Max. PV Array Power (kWp)	10	12	16	20	20
MPPT Operation Voltage Range（V)	125-950
Max. Input Current per MPPT（A)	20/20
Battery Voltage Range（V)	130-750
Max. Charge/Discharge Current（A)	30/30
Rated Output Power(Grid Side)）（kW）	5	6	8	9.9	10
Rated AC Voltage	3L/N/PE; 220/380V;230/400V;240/415V
Max. Output Curent(Grid Side)（A)	7.6	9.1	12.1	15	15.2
Peak Output Apparent Power（KVA）	5	6	8	9.9	10

For more information, please download the
datasheet or product manual.
