How Do Hybrid Inverters Interact with Utility Grids

How Do Hybrid Inverters Interact with Utility Grids

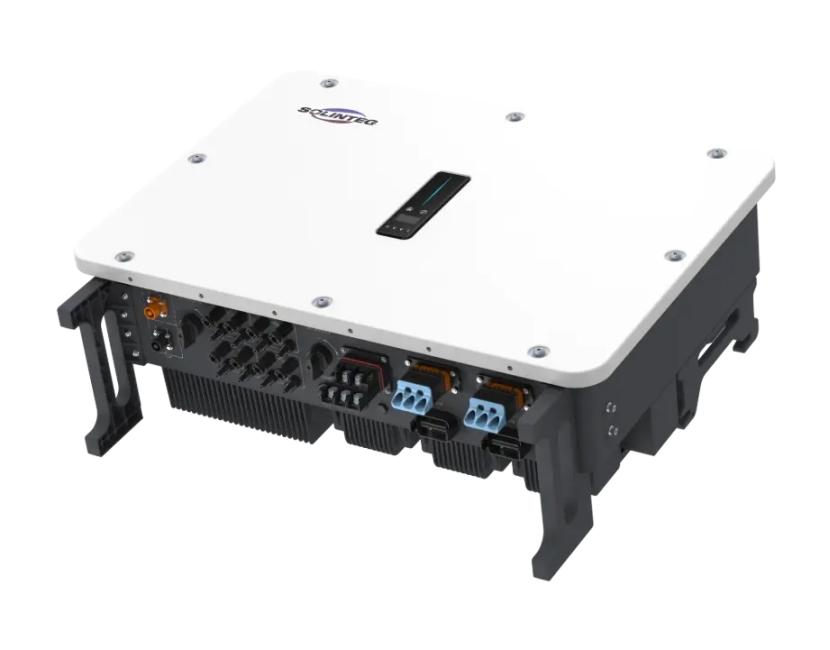

At SOLINTEG, we design advanced energy solutions that bridge solar generation, energy storage, and grid connectivity. In modern commercial and industrial systems such as our hybrid solar inverter platform, especially the M2HT 25-50kW series, the interaction with the utility grid is central to system performance. Based on our product design philosophy and application scenarios referenced in the M2HT technical architecture, we explain how hybrid inverters communicate and coordinate with the utility grid in real operating conditions.

Bidirectional Energy Exchange with the Grid

A hybrid inverter does not only convert DC power from PV modules into AC electricity. It also manages energy flow in both directions between solar, battery storage, and the utility grid.

When solar production exceeds load demand, the inverter can export surplus energy to the grid. When solar is insufficient, it can draw energy from the grid to support loads or charge batteries. This bidirectional interaction ensures continuous power availability while improving the utilization of renewable energy.

In SOLINTEG systems, this process is continuously monitored and controlled through intelligent energy management functions that optimize when to import or export based on system conditions.

Grid Following Operation and Synchronization

A key function of an hybrid solar inverter is grid synchronization. The inverter continuously measures grid voltage, frequency, and phase angle. It then aligns its output precisely to match grid conditions before feeding power.

In the M2HT 25-50kW platform, this synchronization happens through fast digital control systems that ensure stable and compliant grid interaction. The inverter operates in grid-following mode during normal conditions, meaning it depends on the grid as a reference for stable operation while injecting controlled power into it.

This allows safe and regulated energy export while maintaining compatibility with utility requirements.

Grid Support Functions and Stability Contribution

Modern utility grids require more than simple energy injection. Hybrid inverters increasingly provide grid support functions that help maintain power quality.

The M2HT platform supports advanced capabilities such as reactive power regulation, unbalanced load handling, and controlled export limitation. These functions help stabilize voltage and improve compatibility with distribution networks, especially in commercial and industrial environments with fluctuating loads.

The inverter also manages power ramps to avoid sudden changes in grid injection, which supports smoother grid operation and reduces stress on local infrastructure.

Export Control and Energy Optimization

In many installations, utilities impose limits on how much power can be exported. Hybrid inverters address this through intelligent export control.

At SOLINTEG, our hybrid solar inverter systems use energy management logic to prioritize local consumption first, then battery charging, and only export excess energy when allowed. This ensures compliance with grid regulations while maximizing self-consumption.

Dynamic operation modes can also adapt to time-of-use electricity pricing, allowing the system to decide when to charge from the grid or discharge to it.

Conclusion

Hybrid inverters interact with the utility grid through tightly controlled synchronization, bidirectional energy exchange, and intelligent operating modes. In SOLINTEG M2HT 25-50kW systems, this interaction is designed to maintain stability, ensure seamless switching between grid-connected and off-grid operation, and optimize energy usage across solar, battery, and grid sources. As grid requirements continue to evolve, such integrated control becomes essential for efficient and reliable commercial and industrial energy systems.
