How to Ensure Compatibility with Solar Panels in Hybrid PV Systems

How to Ensure Compatibility with Solar Panels in Hybrid PV Systems

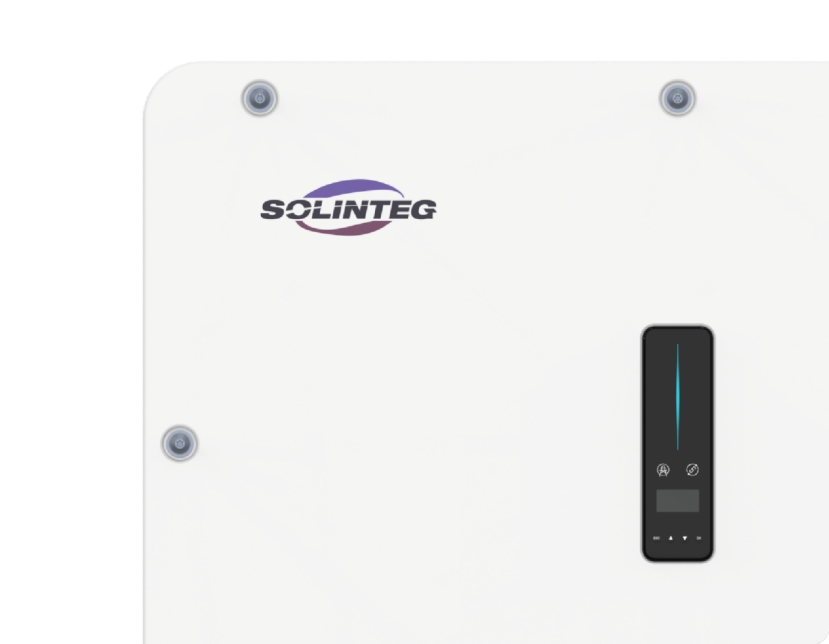

At SOLINTEG, we design our systems to help users build stable and efficient solar energy solutions. When working with a hybrid inverter for solar panels, compatibility is one of the most important factors for system performance, safety, and long-term reliability. In our M2HT series, including models such as M2HT-25K to M2HT-50K, we focus on flexible PV input design and wide operating ranges to support a broad variety of solar panel configurations. In this article, we explain how we ensure compatibility when designing and deploying solar systems.

Understanding PV Input Compatibility

To ensure compatibility, we first evaluate whether the solar panel array matches the electrical limits of the inverter. In the SOLINTEG M2HT platform, the inverter supports a wide MPPT voltage range of 200-950V and a maximum PV input voltage up to 1000V depending on model configuration. This wide range allows us to integrate different module types, string lengths, and installation layouts.

We also ensure that the PV array is properly sized. The M2HT series supports up to 200% DC oversizing, which allows solar panel capacity to exceed inverter rated AC output without performance loss in real-world conditions. This helps improve energy harvest during low irradiance periods.

Matching Solar Panel Electrical Characteristics

When we design compatibility guidelines, we always check three key parameters:

First, the open circuit voltage (Voc) must stay below the inverter's maximum DC input limit under low-temperature conditions.

Second, the operating voltage range of the string must stay within the MPPT window to ensure efficient energy tracking.

Third, the input current per MPPT channel must not exceed the inverter's rated limit. The M2HT series supports high input current handling across multiple MPPTs, enabling flexible string configurations for complex rooftops.

By following these conditions, we ensure stable conversion from DC generated by the solar panels into usable AC or stored energy.

System Design and Configuration Considerations

In real installations, compatibility is not only about electrical limits but also about system architecture. We ensure that the hybrid inverter for solar panels can support different installation environments such as residential, commercial, and industrial systems.

The M2HT platform includes multiple independent MPPT trackers, which allow each string to operate under different shading conditions or orientations without affecting overall performance. This is especially important in real-world environments where rooftop layouts are rarely uniform.

We also consider battery integration compatibility. The inverter supports a wide battery voltage range and high charge and discharge currents, allowing flexible storage system selection without strict brand limitations.

Commissioning and Monitoring for Long-term Compatibility

Compatibility does not end at installation. We use smart monitoring and energy management features to ensure continuous optimization. Through integrated control systems, we can track PV performance, detect mismatches, and adjust system behavior in real time.

This helps maintain efficiency even when system conditions change over time, such as panel aging, expansion of PV strings, or battery upgrades.

Conclusion

Ensuring compatibility with solar panels requires a combination of electrical design, system flexibility, and intelligent control. At SOLINTEG, our hybrid inverter for solar panels solutions, including the M2HT series, is built with wide voltage ranges, high MPPT flexibility, and strong oversizing capability. These features allow us to support diverse PV configurations while maintaining stable performance.

By carefully matching panel specifications, designing flexible system architecture, and using advanced monitoring, we help ensure long-term compatibility and reliable solar energy utilization.
